Kernel Tuning and Analysis Utilities

KTAU Architecture

University of Oregon


1. KTAU Architecture

KTAU comprises 4 individual modules

  • - KTAU Instrumentation

  • - KTAU Infrastructure

  • - KTAU Proc Interface

  • - KTAU User-API Library and Utilities

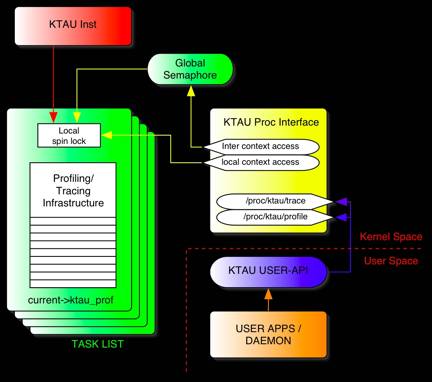

Figure 1. Figure 1 : KTAU Architecture Diagram

Figure 1 : KTAU Architecture Diagram

1.1. KTAU Instrumentation

KTAU places instrumentation points in Linux kernel source to intercept the execution path and extract the performance data of interest. For instance, KTAU places instrumentation at the entry and exit point of a kernel routine to measure the amount of time spending inside the routine. Time measurement is in tick, which is obtained from the timestamp counter of a processor. Most Intel processors tick-rate is normally equal to the clock speed of the processor, but varies on PPC.

For each function being instrumented, KTAU assigns a unique ID at runtime. This ID is assigned dynamically depending on the order the function was executed. It is assigned once at the first time a process execute the function, and will be maintained as long as the system is running. In other word, the ID is not bound to the function across the system reboot. This ID is used as an index into a table, which stores profile data of each function. This technique allows profile data to be accessed directly with out searching through a list of functions.

1.2. KTAU Infrastructure

KTAU main infrastructure resides in task_struct of each process. It consists of a profile table, a circular trace buffer, locks, and state variables. The profile table is used to store profile data (i.e. amount of time a process spent inside a function, counter, etc). The function ID is used to index into the table. Currently, the table has 1,024 entries, which are grouped into ranges that adopt different indexing schemes. Please refer to appendix A for more detail.

1.3. KTAU Proc Interface

KTAU uses /proc filesystem as a communication channel between kernel-space and user-space. /proc/ktau/profile and /proc/ktau/trace are used for accessing profile data and trace data respectively. Generally, applications from user-space access the data through provided user-API library, which uses ioctl as underlying communication method.

1.4. KTAU User-API Library and Utilities

KTAU uses /proc filesystem as a communication channel between kernel-space and user-space. "/proc/ktau/profile"and /proc/ktau/trace are used for accessing profile data and trace data respectively. Generally, applications from user-space access the data through provided user-API library, which uses ioctl as underlying communication method.
