Experimental Results

We validate our parallel performance intrusion compensation model using a prototype implemented within the TAU performance system. To illustrate the problem, we examine a parallel MPI application that computes the value of $\pi$ using the Monte-Carlo integration algorithm. The program calculates the area under the $\pi$ function curve ( $\int^1_0 4/(1+x^2)~dx$) from $0$ to $1$. The program comprises of a master (or server) task that generates work packets with a set of random numbers. The master task waits for a request from any worker and sends the chunk of randomly generated numbers to it. For each pair of numbers that is given to a particular worker, it finds out if the pair of cartesian co-ordinates represented by the numbers is below or above the $\pi$ function curve. Then, collectively, the workers estimate the value of $\pi$ iteratively until it is within a given error range. This simple example highlights how instrumentation overheads accumulated at the worker tasks are communicated to the master task. We execute the application in four modes: when there is no TAU instrumentation, with instrumentation without any compensation, with local perturbation compensation, and finally, with parallel perturbation compensation. As shown in table 1, these experiments are shown as distinct columns and we show the time spent in the worker and master tasks. We show the minimum times spent in the respective tasks. The timer overhead associated with a TAU timer was 480 nanoseconds on an Intel®Itanium2 Linux machine running at 1.5 GHz. The accuracy of compensation improves when we use high resolution timers, such as those provided by PAPI(4).

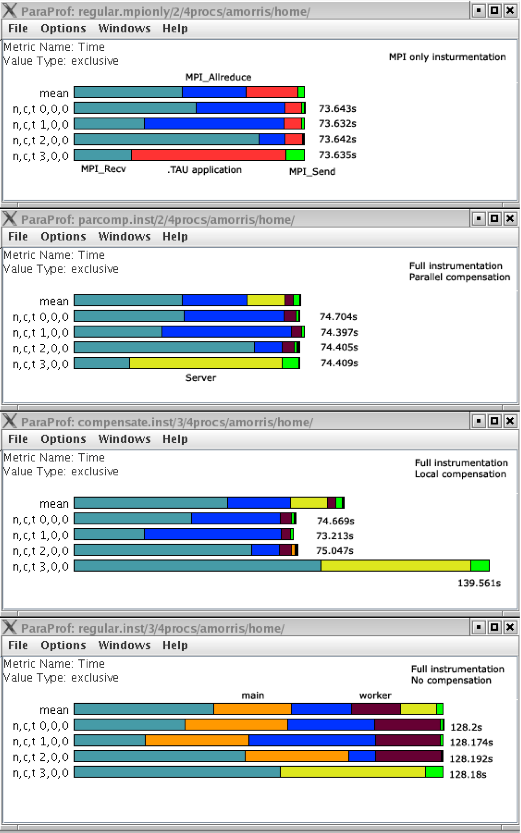

The results in Figure 13 and Table 1 show that local compensation schemes do manage to reduce the overhead in the worker tasks, but they fail in the master. The parallel compensation scheme reduces the overhead properly in both master and worker tasks.

Figure: Parallel overhead compensation in TAU
