10.3. 3-D Scatter Plot

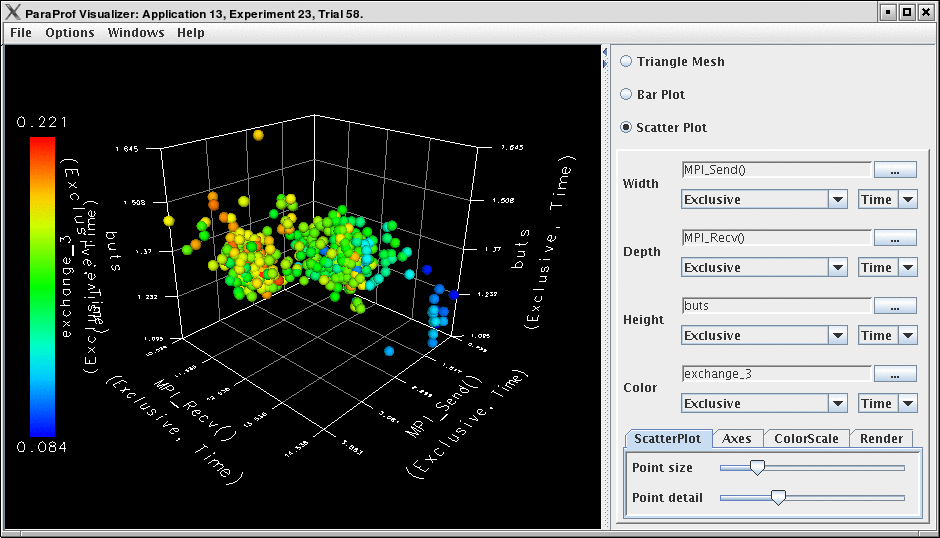

Figure 10.3. 3-D Scatter Plot

3-D Scatter Plot

This visualization method plots the value of each thread along up to 4 axes. Each axis represents a different function and metric. This view allows you to discern clustering of values and relationships between functions across threads.

Select functions using the button for each dimension, then select a metric. A single function across 4 metrics could be used, for example.
