11.5. Thread Call Path Relations Window

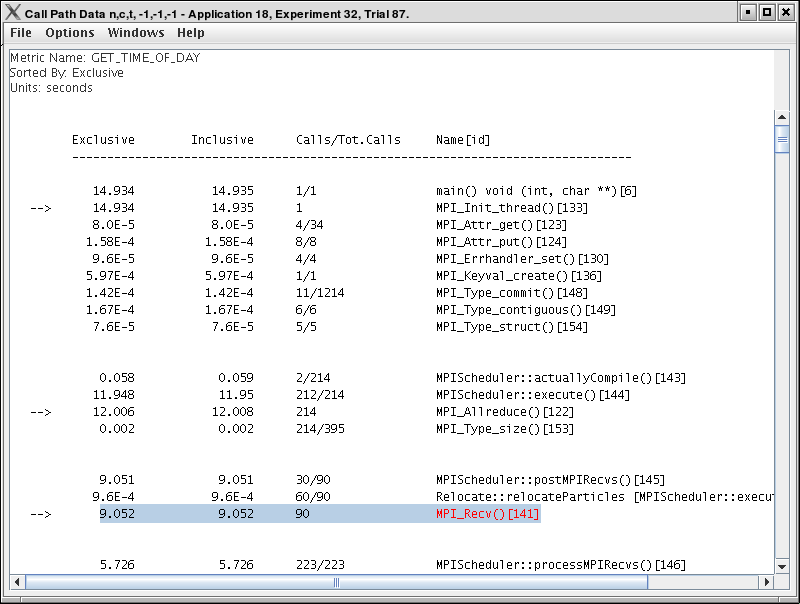

Figure 11.7. Thread Call Path Relations Window

Thread Call Path Relations Window

This display shows callpath data in a gprof style view. Each function is shown with its immediate parents. For example, Figure 11.7, “Thread Call Path Relations Window” shows that MPI_Recv() is call from two places for a total of 9.052 seconds. Most of that time comes from the 30 calls when MPI_Recv() is called by MPIScheduler::postMPIRecvs(). The other 60 calls do not amount to much time.
